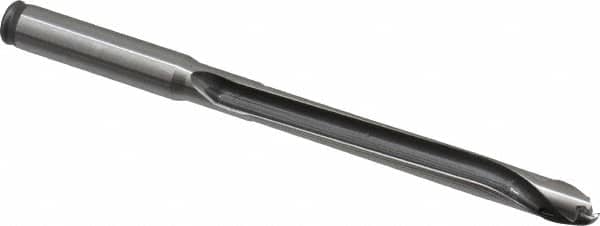

Kennametal - 8.5 to 8.99mm Diam, 8xD, 72mm Max Depth, 3/8" Shank Diam, 85.3mm Flute, 130.18mm OAL, Replaceable Tip Drill - KTIP03390HP Insert, G Seat Size, Series KenTIP
Item #: 01243468
Brand: Kennametal
Model #: 2542069
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 8.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.3346 |
| Maximum Drill Diameter (mm) | 8.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3539 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 2.8300 |
| Maximum Drill Depth (mm) | 72.00 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Style | KTIP03390HP |
| Insert Seat Size | G |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 1.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.0472 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0590 |
| Flute Length (mm) | 85.30 |
| Flute Length (Decimal Inch) | 3.3583 |
| Overall Length (mm) | 130.18 |
| Overall Length (Decimal Inch) | 5.1252 |
| Shank Length (mm) | 40.39 |
| Shank Length (Decimal Inch) | 1.5900 |
