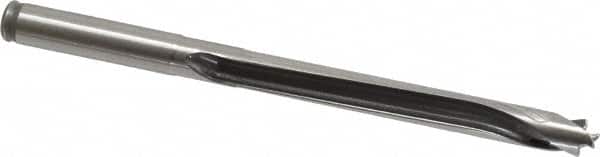

Kennametal - 9.5 to 9.99mm Diam, 8xD, 80mm Max Depth, 3/8" Shank Diam, 91.5mm Flute, 136.53mm OAL, Replaceable Tip Drill - KTIP03750HP Insert, I Seat Size, Series KenTIP
Item #: 01243484
Brand: Kennametal
Model #: 2542072
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 9.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.3740 |
| Maximum Drill Diameter (mm) | 9.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3933 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 3.1500 |
| Maximum Drill Depth (mm) | 80.00 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Style | KTIP03750HP |
| Insert Seat Size | I |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 1.40 |
| Coolant Hole Diameter (Decimal Inch) | 0.0551 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0630 |
| Flute Length (mm) | 91.50 |
| Flute Length (Decimal Inch) | 3.6024 |
| Overall Length (mm) | 136.53 |
| Overall Length (Decimal Inch) | 5.3752 |
| Shank Length (mm) | 40.39 |
| Shank Length (Decimal Inch) | 1.5900 |
