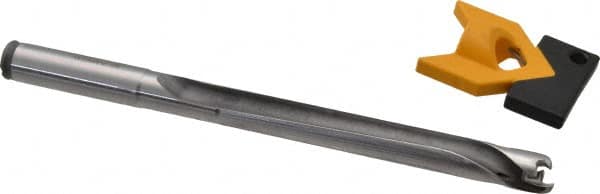

Kennametal - 11 to 11.49mm Diam, 8xD, 92mm Max Depth, 7/16" Shank Diam, 111.3mm Flute, 158.75mm OAL, Replaceable Tip Drill - KTIP04375HP Insert, L Seat Size, Series KenTIP
Item #: 01243526
Brand: Kennametal
Model #: 2542086
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 11.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4331 |
| Maximum Drill Diameter (mm) | 11.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4524 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 3.6200 |
| Maximum Drill Depth (mm) | 92.00 |
| Shank Diameter (mm) | 11.11 |
| Shank Diameter (Inch) | 7/16 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Insert Style | KTIP04375HP |
| Insert Seat Size | L |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 1.60 |
| Coolant Hole Diameter (Decimal Inch) | 0.0630 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0750 |
| Flute Length (mm) | 111.30 |
| Flute Length (Decimal Inch) | 4.3819 |
| Overall Length (mm) | 158.75 |
| Overall Length (Decimal Inch) | 6.2500 |
| Shank Length (mm) | 42.42 |
| Shank Length (Decimal Inch) | 1.6700 |
