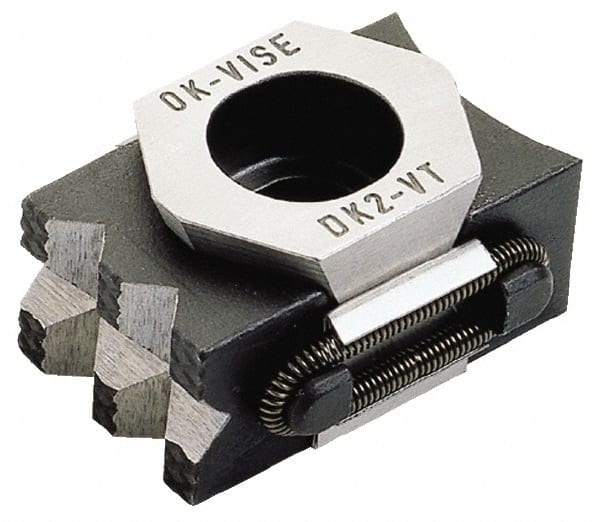

Mitee-Bite - 5,000 Lb Holding Force Single Vise Machinable Wedge Clamp - 1.3" Wide x 0.83" Deep x 0.59" High Base, 30 to 34 HRC, 1.3 to 1.46" Jaw Spread, 30 Lb/Ft Torque, 5/16-18 Screw Thread
Item #: 01243625
Brand: Mitee-Bite
Model #: 47120
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Wedge Clamp Style | Vise |
| Single or Double Wedge | Single |
| Screw Thread Size | 5/16-18 |
| Machinable | Yes |
| Holding Force (Lb.) | 5000.00 |
| Torque (Ft/Lb) | 30.00 |
| Base Height (Decimal Inch) | 0.5900 |
| Base Width (Decimal Inch) | 1.3000 |
| Base Depth (Decimal Inch) | 0.8300 |
| Jaw Hardness (HRC) | 30 to 34 |
| Minimum Jaw Spread (Decimal Inch) | 1.3000 |
| Optimum Jaw Spread (Decimal Inch) | 1.3800 |
| Maximum Jaw Spread (Decimal Inch) | 1.4600 |
| Projection From Base (Decimal Inch) | 0.1000 |
| Overall Width (Decimal Inch) | 1.3000 |
| Includes | Mounting Screw |
