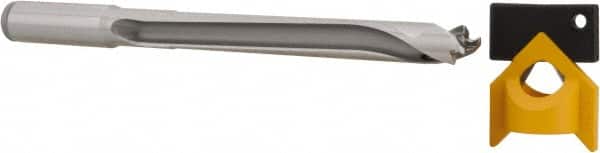

Kennametal - 13 to 13.49mm Diam, 8xD, 108mm Max Depth, 9/16" Shank Diam, 130.3mm Flute, 180.98mm OAL, Replaceable Tip Drill - KTIP05156HP Insert, P Seat Size, Series KenTIP
Item #: 01243666
Brand: Kennametal
Model #: 2542090
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 4.2500 |
| Maximum Drill Depth (mm) | 108.00 |
| Shank Diameter (mm) | 14.29 |
| Shank Diameter (Inch) | 9/16 |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Insert Style | KTIP05156HP |
| Insert Seat Size | P |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 1.80 |
| Coolant Hole Diameter (Decimal Inch) | 0.0709 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0910 |
| Flute Length (mm) | 130.30 |
| Flute Length (Decimal Inch) | 5.1299 |
| Overall Length (mm) | 180.98 |
| Overall Length (Decimal Inch) | 7.1252 |
| Shank Length (mm) | 45.47 |
| Shank Length (Decimal Inch) | 1.7900 |
