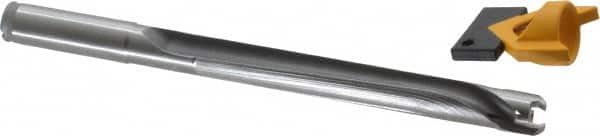

Kennametal - 14 to 14.49mm Diam, 8xD, 116mm Max Depth, 9/16" Shank Diam, 136.4mm Flute, 187.33mm OAL, Replaceable Tip Drill - KTIP05625HP Insert, R Seat Size, Series KenTIP
Item #: 01243682
Brand: Kennametal
Model #: 2542092
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 14.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (mm) | 14.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5705 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 4.5700 |
| Maximum Drill Depth (mm) | 116.00 |
| Shank Diameter (mm) | 14.29 |
| Shank Diameter (Inch) | 9/16 |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Insert Style | KTIP05625HP |
| Insert Seat Size | R |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0787 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0980 |
| Flute Length (mm) | 136.40 |
| Flute Length (Decimal Inch) | 5.3701 |
| Overall Length (mm) | 187.33 |
| Overall Length (Decimal Inch) | 7.3752 |
| Shank Length (mm) | 45.47 |
| Shank Length (Decimal Inch) | 1.7900 |
