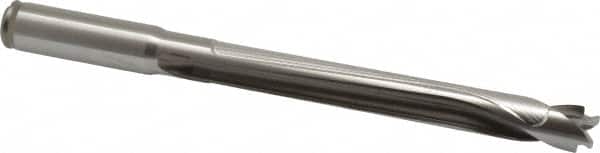

Kennametal - 14 to 14.49mm Diam, 8xD, 120mm Max Depth, 5/8" Shank Diam, 136.8mm Flute, 190.5mm OAL, Replaceable Tip Drill - KTIP05774HP Insert, S Seat Size, Series KenTIP
Item #: 01243690
Brand: Kennametal
Model #: 2542093
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 14.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (mm) | 14.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5705 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 4.7200 |
| Maximum Drill Depth (mm) | 120.00 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | KTIP05774HP |
| Insert Seat Size | S |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0787 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0980 |
| Flute Length (mm) | 136.80 |
| Flute Length (Decimal Inch) | 5.3858 |
| Overall Length (mm) | 190.50 |
| Overall Length (Decimal Inch) | 7.5000 |
| Shank Length (mm) | 48.51 |
| Shank Length (Decimal Inch) | 1.9100 |
