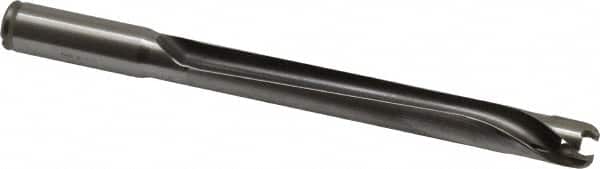

Kennametal - 16 to 16.99mm Diam, 8xD, 5.36" Max Depth, 11/16" Shank Diam, 149.1mm Flute, 203.2mm OAL, Replaceable Tip Drill - KTIP1600HPM Insert, U Seat Size, Series KenTIP
Item #: 01243724
Brand: Kennametal
Model #: 2542095
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 5.3600 |
| Shank Diameter (mm) | 17.46 |
| Shank Diameter (Inch) | 11/16 |
| Shank Diameter (Decimal Inch) | 0.6875 |
| Insert Style | KTIP1600HPM |
| Insert Seat Size | U |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.0866 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1100 |
| Flute Length (mm) | 149.10 |
| Flute Length (Decimal Inch) | 5.8701 |
| Overall Length (mm) | 203.20 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Length (mm) | 48.51 |
| Shank Length (Decimal Inch) | 1.9100 |
