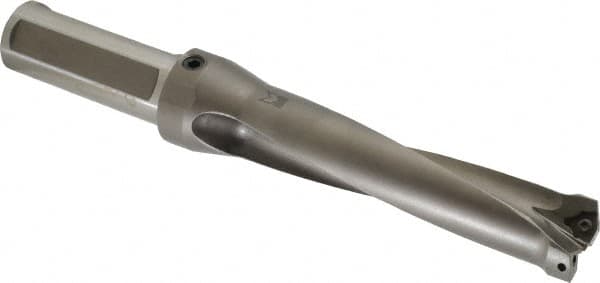

Kennametal - 5-1/4" Max Drill Depth, 4xD, 1.3126" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 01244292
Brand: Kennametal
Model #: 1522119
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (Decimal Inch) | 1.3126 |
| Maximum Drill Depth (Inch) | 5-1/4 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 6.62x3.75 |
| Insert Size (Decimal Inch) | 0.2600x0.1480 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.4380 |
| Maximum Drill Diameter (mm) | 36.51 |
| Overall Length/Projection (mm) | 177.80 |
| Overall Length/Projection (Decimal Inch) | 7.0000 |
| Insert Compatibility | DFT 06T308 |
| Body Length (Decimal Inch) | 7.0000 |
| Body Length (mm) | 177.80 |
| Shank Length (mm) | 82.55 |
| Shank Length (Decimal Inch) | 3.2500 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
