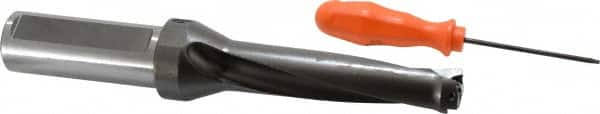

Kennametal - 4-1/4" Max Drill Depth, 4xD, 1.0626" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 01244672
Brand: Kennametal
Model #: 1522127
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (Decimal Inch) | 1.0626 |
| Maximum Drill Depth (Decimal Inch) | 4.2500 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 5.29x3.75 |
| Insert Size (Decimal Inch) | 0.2080x0.1480 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.1880 |
| Maximum Drill Diameter (mm) | 30.17 |
| Overall Length/Projection (mm) | 149.23 |
| Overall Length/Projection (Decimal Inch) | 5.8752 |
| Insert Compatibility | DFT 05T308 |
| Body Length (Decimal Inch) | 5.8800 |
| Body Length (mm) | 149.23 |
| Shank Length (mm) | 82.55 |
| Shank Length (Decimal Inch) | 3.2500 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
