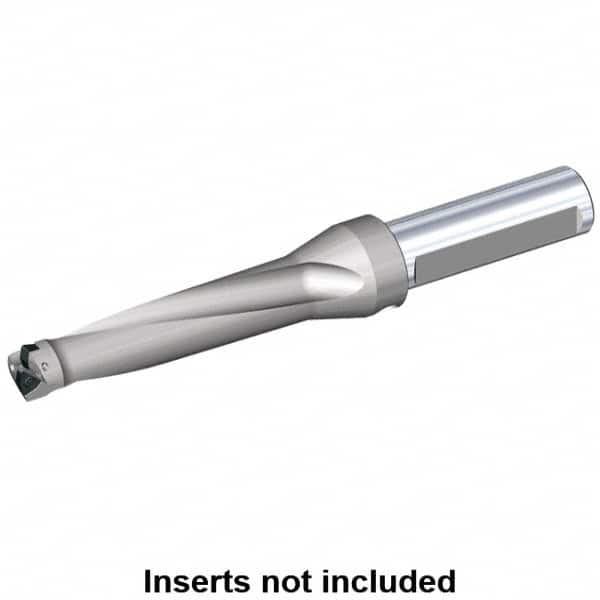

Kennametal - 3.94" Max Drill Depth, 4xD, 25mm Diam, Indexable Insert Drill - 1" Shank Diam, Straight Shank
Item #: 01244771
Brand: Kennametal
Model #: 1522135
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 25.00 |
| Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Depth (Decimal Inch) | 3.9400 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Diameter (Decimal Inch) | 1.1090 |
| Insert Compatibility | DFT 05T3.. |
| Body Length (Decimal Inch) | 5.5000 |
| Shank Length (Decimal Inch) | 3.0000 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | R1/4-18 |
