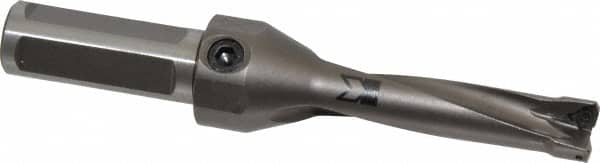

Kennametal - 63.5mm Max Drill Depth, 4xD, 5/8" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Straight Shank
Item #: 01244870
Brand: Kennametal
Model #: 1522176
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 16.00 |
| Drill Diameter (Inch) | 5/8 |
| Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Depth (mm) | 63.50 |
| Maximum Drill Depth (Decimal Inch) | 2.5000 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Insert Size (mm) | 3.97x2.95 |
| Insert Size (Decimal Inch) | 0.1560x0.1160 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (mm) | 98.43 |
| Overall Length/Projection (Decimal Inch) | 3.8750 |
| Insert Compatibility | DFT 030204 |
| Body Length (Decimal Inch) | 3.8750 |
| Body Length (mm) | 98.43 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
