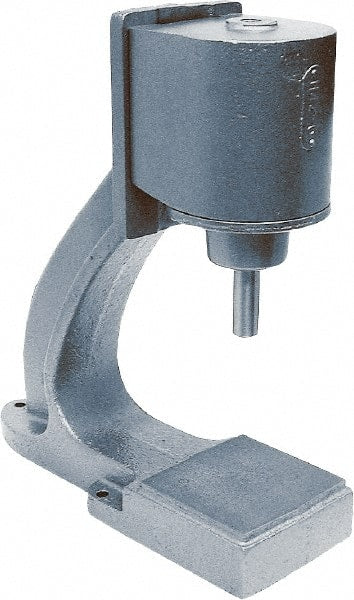

Mead - 1" Ram, 6" Throat Depth, 3/4 Ton Pneumatic Arbor Press - 8-1/2" Max Work Height x 5-1/4" Max Work Width, 5-1/4" Base Width x 14-1/4" Base Depth
Item #: 01245539
Brand: Mead
Model #: AP-400PX2.5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Pressure | 3/4 Ton |
| Ram Width/Diameter (Inch) | 1 |
| Throat Depth (Inch) | 6 |
| Maximum Work Height (Inch) | 8-1/2 |
| Maximum Work Width/Diameter (Inch) | 5-1/4 |
| Stroke (Inch) | 2-1/2 |
| Stroke (Decimal Inch) | 2.5000 |
| Table Length (Inch) | 5 |
| Table Length (Decimal Inch) | 5.0000 |
| Table Width (Inch) | 5 |
| Table Width (Decimal Inch) | 5.0000 |
| Air Connector Size (Inch) | 1/2 |
| Base Width (Inch) | 5-1/4 |
| Base Depth (Inch) | 14-1/4 |
| Overall Height (Inch) | 23-5/16 |
