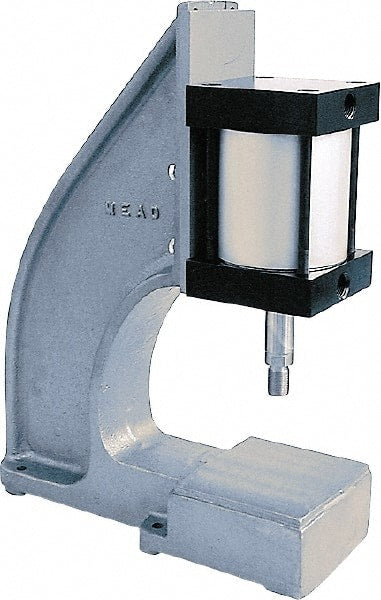

Mead - 1" Ram, 5-1/2" Throat Depth, 3/4 Ton Pneumatic Arbor Press - 7" Max Work Height x 7-1/8" Max Work Width
Item #: 01245588
Brand: Mead
Model #: CP-400CX4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Pressure | 3/4 Ton |
| Ram Width/Diameter (Inch) | 1 |
| Throat Depth (Inch) | 5-1/2 |
| Maximum Work Height (Inch) | 7 |
| Maximum Work Width/Diameter (Inch) | 7-1/8 |
| Stroke (Decimal Inch) | 4.0000 |
| Table Length (Decimal Inch) | 8.7500 |
| Table Width (Decimal Inch) | 6.8750 |
| Air Connector Size (Inch) | 1/2 |
