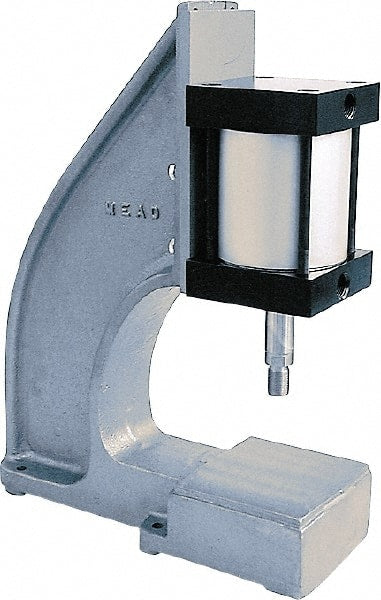

Mead - 1-3/8" Ram, 7-3/4" Throat Depth, 1-3/4 Ton Pneumatic Arbor Press - 9-13/16" Max Work Height x 6" Max Work Width, 6" Base Width x 19-1/2" Base Depth
Item #: 01245596
Brand: Mead
Model #: AP-600CX4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Pressure | 1-3/4 Ton |
| Ram Width/Diameter (Inch) | 1-3/8 |
| Throat Depth (Inch) | 7-3/4 |
| Maximum Work Height (Inch) | 9-13/16 |
| Maximum Work Width/Diameter (Inch) | 6 |
| Stroke (Inch) | 4 |
| Stroke (Decimal Inch) | 4.0000 |
| Table Length (Inch) | 8 |
| Table Length (Decimal Inch) | 8.0000 |
| Table Width (Inch) | 8 |
| Table Width (Decimal Inch) | 8.0000 |
| Air Connector Size (Inch) | 3/4 |
| Base Width (Inch) | 6 |
| Base Depth (Inch) | 19-1/2 |
| Overall Height (Inch) | 28 |
