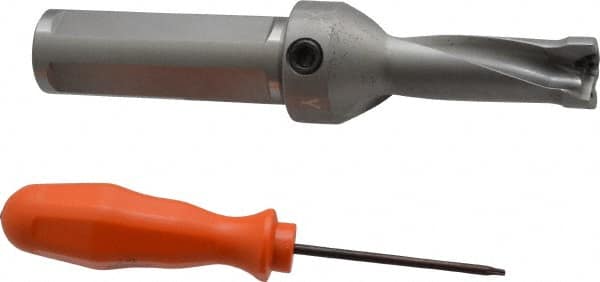

Kennametal - 2-1/32" Max Drill Depth, 2.5xD, 20.6mm Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 01246230
Brand: Kennametal
Model #: 1527698
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 20.60 |
| Drill Diameter (Decimal Inch) | 0.8110 |
| Maximum Drill Depth (Inch) | 2.031 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 3.97x2.95 |
| Insert Size (Decimal Inch) | 0.1560x0.1160 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9130 |
| Maximum Drill Diameter (mm) | 23.18 |
| Overall Length/Projection (mm) | 212.73 |
| Overall Length/Projection (Decimal Inch) | 8.3752 |
| Insert Compatibility | DFT 030304 |
| Body Length (Decimal Inch) | 3.3800 |
| Body Length (mm) | 85.73 |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
