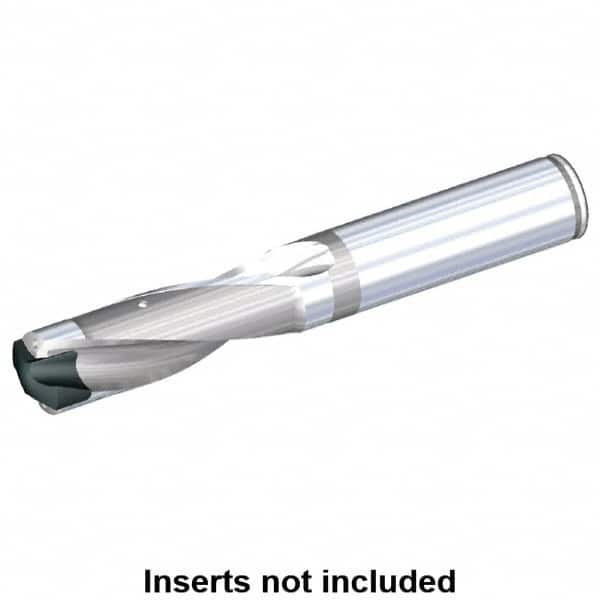

Kennametal - 32.94 to 33.94mm Diam, 5xD, 164.59mm Max Depth, 1-1/2" Shank Diam, 218.29mm Flute, 317.5mm OAL, Replaceable Tip Drill - KSEM1297 Insert, 9 Seat Size, Series KSEM
Item #: 01256437
Brand: Kennametal
Model #: 1606904
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 32.94 |
| Minimum Drill Diameter (Decimal Inch) | 1.2969 |
| Maximum Drill Diameter (mm) | 33.94 |
| Maximum Drill Diameter (Decimal Inch) | 1.3362 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 6.4800 |
| Maximum Drill Depth (mm) | 164.59 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Style | KSEM1297 |
| Insert Seat Size | 9 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.2000 |
| Flute Length (mm) | 218.29 |
| Flute Length (Decimal Inch) | 8.5941 |
| Overall Length (mm) | 317.50 |
| Overall Length (Decimal Inch) | 12.5000 |
| Shank Length (Decimal Inch) | 3.7500 |
