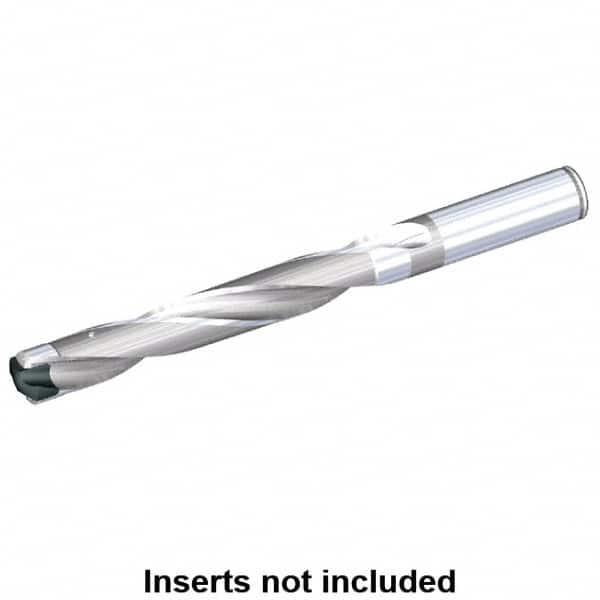

Kennametal - 15.88 to 16.38mm Diam, 10xD, 158.75mm Max Depth, 3/4" Shank Diam, 173.78mm Flute, 228.6mm OAL, Replaceable Tip Drill - KSEM0625 Insert, 1 Seat Size, Series KSEM
Item #: 01256544
Brand: Kennametal
Model #: 1729874
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 15.88 |
| Minimum Drill Diameter (Decimal Inch) | 0.6252 |
| Maximum Drill Diameter (mm) | 16.38 |
| Maximum Drill Diameter (Decimal Inch) | 0.6449 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (Decimal Inch) | 6.2500 |
| Maximum Drill Depth (mm) | 158.75 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0625 |
| Insert Seat Size | 1 |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1000 |
| Flute Length (mm) | 173.78 |
| Flute Length (Decimal Inch) | 6.8417 |
| Overall Length (mm) | 228.60 |
| Overall Length (Decimal Inch) | 9.0000 |
| Shank Length (Decimal Inch) | 2.0000 |
