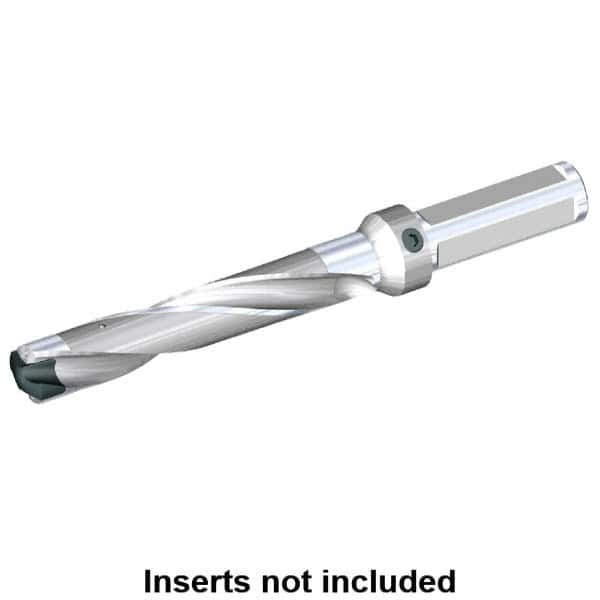

Kennametal - 12.93 to 13.43mm Diam, 5xD, 2.55" Max Depth, 3/4" Shank Diam, 77.06mm Flute, 152.4mm OAL, Replaceable Tip Drill - KSEM0509 Insert, C Seat Size, Series KSEM
Item #: 01256593
Brand: Kennametal
Model #: 1785285
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 12.93 |
| Minimum Drill Diameter (Decimal Inch) | 0.5091 |
| Maximum Drill Diameter (mm) | 13.43 |
| Maximum Drill Diameter (Decimal Inch) | 0.5287 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.5500 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0509 |
| Insert Seat Size | C |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.0800 |
| Flute Length (mm) | 77.06 |
| Flute Length (Decimal Inch) | 3.0339 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Length (Decimal Inch) | 2.0000 |
