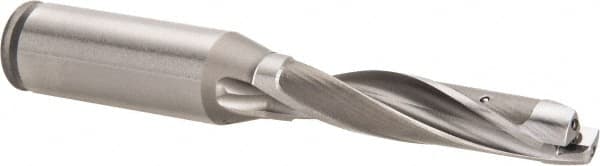

Kennametal - 13.49 to 13.5mm Diam, 5xD, 67.56mm Max Depth, 3/4" Shank Diam, 82.8mm Flute, 136.53mm OAL, Replaceable Tip Drill - KSEM1350 Insert, C Seat Size, Series KSEM
Item #: 01256718
Brand: Kennametal
Model #: 1786060
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 13.49 |
| Minimum Drill Diameter (Decimal Inch) | 0.5311 |
| Maximum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5315 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.6600 |
| Maximum Drill Depth (mm) | 67.56 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM1350 |
| Insert Seat Size | C |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0800 |
| Flute Length (mm) | 82.80 |
| Flute Length (Decimal Inch) | 3.2598 |
| Overall Length (mm) | 136.53 |
| Overall Length (Decimal Inch) | 5.3752 |
| Shank Length (Decimal Inch) | 2.0000 |
