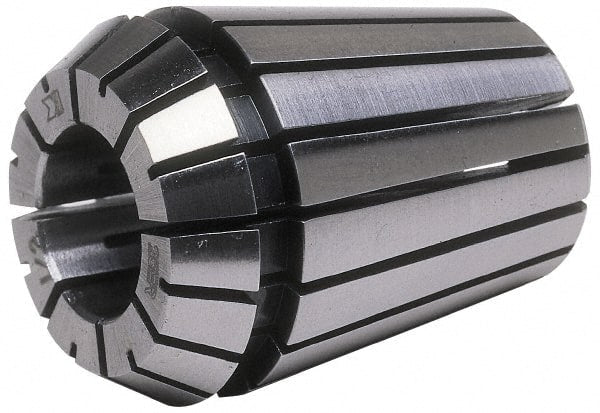

Kennametal - 4 to 4.5mm ER8 Collet - 0.0152mm TIR, 13.49mm OAL, 8.51mm Overall Diam
Item #: 01262484
Brand: Kennametal
Model #: 1025776
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER8 |
| Size Range (mm) | 4.00-4.50 |
| TIR (mm) | 0.0152 |
| TIR (Decimal Inch) | 0.000600 |
| Minimum Collet Capacity (mm) | 4.00 |
| Maximum Collet Capacity (mm) | 4.50 |
| Overall Length (mm) | 13.49 |
| Overall Length (Decimal Inch) | 0.5310 |
| Overall Diameter (mm) | 8.51 |
| Overall Diameter (Decimal Inch) | 0.3350 |
| PSC Code | 5136 |
