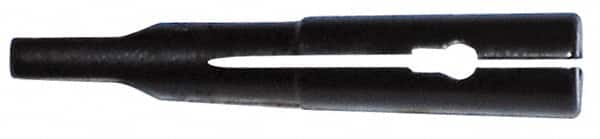

Scully Jones - #9, MT1 Outside Morse Taper, Drill Driver - 0.19 Inch Projection, 0.118 to 0.122 Inch Drill Tang Thickness
Item #: 01277730
Brand: Scully Jones
Model #: 09329
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Driver Type | Drill Driver |
| Outside Morse Taper Size | MT1 |
| Drill Size (Wire) | #9 |
| Drill Size (mm) | 5.00 |
| Drill Size (Decimal Inch) | 0.1968 |
| Projection (Decimal Inch) | 0.1900 |
| Drill Depth (Decimal Inch) | 0.8800 |
| Drill Tang Compatible | Yes |
| Maximum Drill Tang Thickness (Decimal Inch) | 0.1220 |
| Minimum Drill Tang Thickness (Decimal Inch) | 0.1180 |
| Drill Tang Length (Decimal Inch) | 0.3100 |
| Approval Listing/Regulations | ANSI/ASME B94.35 |
| Runout Maximum (Decimal Inch) | 0.0020 |
