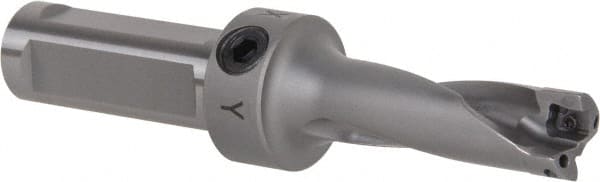

Kennametal - 1-7/8" Max Drill Depth, 3xD, 0.6252" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Flange Shank
Item #: 01278209
Brand: Kennametal
Model #: 1715093
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFR |
| Drill Diameter (Decimal Inch) | 0.6252 |
| Maximum Drill Depth (Inch) | 1-7/8 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 7.12x4.90x2.79 |
| Insert Size (Decimal Inch) | 0.2803x0.1929x0.1098 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6640 |
| Maximum Drill Diameter (mm) | 16.87 |
| Overall Length/Projection (mm) | 122.17 |
| Overall Length/Projection (Decimal Inch) | 4.8098 |
| Insert Compatibility | DFR 020204 |
| Body Length (Decimal Inch) | 2.8100 |
| Body Length (mm) | 71.37 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
