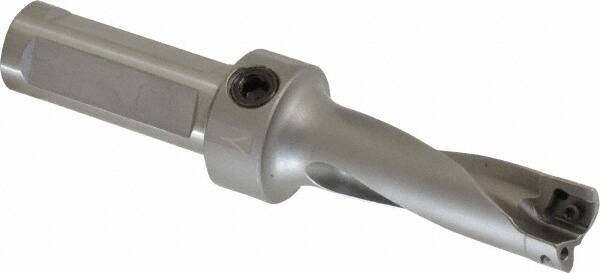

Kennametal - 2.06" Max Drill Depth, 3xD, 0.6882" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Flange Shank
Item #: 01278225
Brand: Kennametal
Model #: 2036643
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFR |
| Drill Diameter (Decimal Inch) | 0.6882 |
| Maximum Drill Depth (Decimal Inch) | 2.0600 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 8.71x6.00x2.88 |
| Insert Size (Decimal Inch) | 0.3429x0.2362x0.1134 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7270 |
| Overall Length/Projection (mm) | 127.04 |
| Overall Length/Projection (Decimal Inch) | 5.0016 |
| Insert Compatibility | DFR 030204 |
| Body Length (Decimal Inch) | 3.0000 |
| Body Length (mm) | 76.24 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
