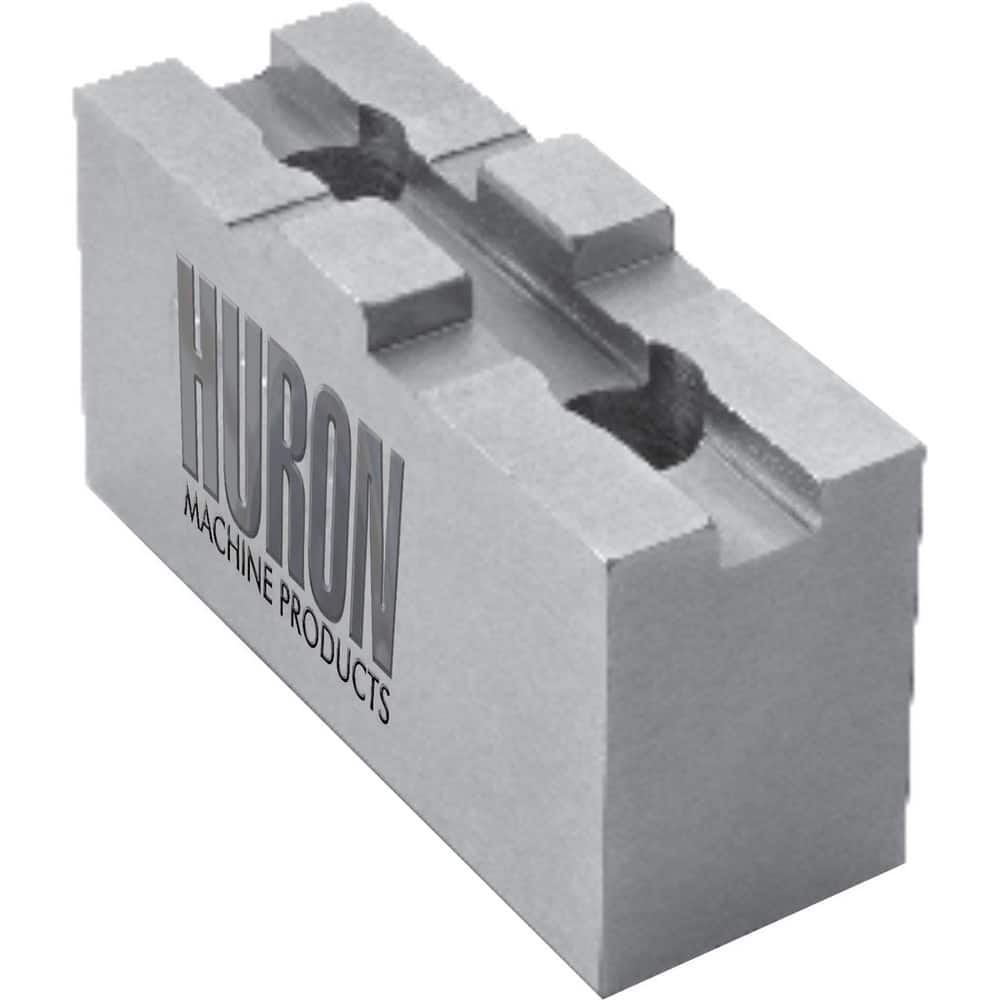

Soft Lathe Chuck Jaw: Tongue & Groove 1″ OAW, 1.5″ OAH, Steel
Item #: 01284686
Brand: Huron Machine Products
Model #: WAK140
Product Specifications
| Jaw Shape | Square |
| Jaw Interface Type | Tongue & Groove |
| Material | Steel |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 5.5000 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 3.0000 |
| Tongue Width (Decimal Inch) | 0.7090 |
| Fastener Size (mm) | 8.00 |
| Slot Width (Decimal Inch) | 0.3150 |
| Groove Width (Decimal Inch) | 0.3150 |
| Tapped Hole Size | 8 mm |
| Overall Height (Decimal Inch) | 1.5000 |
| Overall Width/Diameter (Decimal Inch) | 1 |
| Overall Width/Diameter (Decimal Inch) | 1.0000 |
| Number Of Jaws | 1 |
