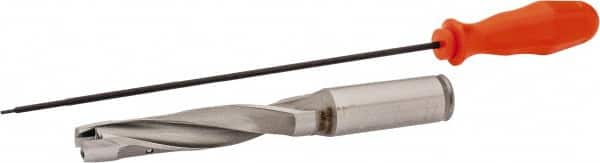

Kennametal - 15.88 to 16.38mm Diam, 5xD, 80mm Max Depth, 3/4" Shank Diam, 97.58mm Flute, 152.4mm OAL, Replaceable Tip Drill - KSEM0625 Insert, 1 Seat Size, Series KSEM
Item #: 01291673
Brand: Kennametal
Model #: 1330471
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 15.88 |
| Minimum Drill Diameter (Decimal Inch) | 0.6252 |
| Maximum Drill Diameter (mm) | 16.38 |
| Maximum Drill Diameter (Decimal Inch) | 0.6449 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 3.1500 |
| Maximum Drill Depth (mm) | 80.00 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0625 |
| Insert Seat Size | 1 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1000 |
| Flute Length (mm) | 97.58 |
| Flute Length (Decimal Inch) | 3.8417 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
