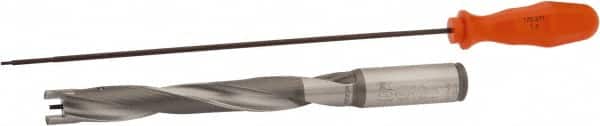

Kennametal - 16.67 to 17.17mm Diam, 7xD, 126mm Max Depth, 3/4" Shank Diam, 148.38mm Flute, 203.2mm OAL, Replaceable Tip Drill - KSEM0656 Insert, 1 Seat Size, Series KSEM
Item #: 01291772
Brand: Kennametal
Model #: 1519229
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 16.67 |
| Minimum Drill Diameter (Decimal Inch) | 0.6563 |
| Maximum Drill Diameter (mm) | 17.17 |
| Maximum Drill Diameter (Decimal Inch) | 0.6760 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 4.9600 |
| Maximum Drill Depth (mm) | 126.00 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0656 |
| Insert Seat Size | 1 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1000 |
| Flute Length (mm) | 148.38 |
| Flute Length (Decimal Inch) | 5.8417 |
| Overall Length (mm) | 203.20 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
