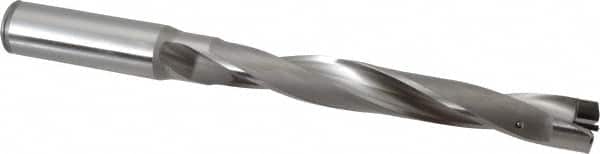

Kennametal - 22.23 to 22.73mm Diam, 7xD, 168mm Max Depth, 1" Shank Diam, 196.01mm Flute, 276.23mm OAL, Replaceable Tip Drill - KSEM0875 Insert, 4 Seat Size, Series KSEM
Item #: 01292168
Brand: Kennametal
Model #: 1519270
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 22.23 |
| Minimum Drill Diameter (Decimal Inch) | 0.8752 |
| Maximum Drill Diameter (mm) | 22.73 |
| Maximum Drill Diameter (Decimal Inch) | 0.8949 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 6.6100 |
| Maximum Drill Depth (mm) | 168.00 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | KSEM0875 |
| Insert Seat Size | 4 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1400 |
| Flute Length (mm) | 196.01 |
| Flute Length (Decimal Inch) | 7.7169 |
| Overall Length (mm) | 276.23 |
| Overall Length (Decimal Inch) | 10.8752 |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
