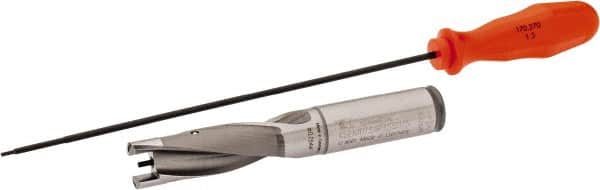

Kennametal - 18.64 to 19.14mm Diam, 3xD, 55.96mm Max Depth, 3/4" Shank Diam, 2.97" Flute, 5.13" OAL, Replaceable Tip Drill - KSEM0734 Insert, 2 Seat Size, Series KSEM
Item #: 01293281
Brand: Kennametal
Model #: 2238537
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 18.64 |
| Minimum Drill Diameter (Decimal Inch) | 0.7339 |
| Maximum Drill Diameter (mm) | 19.14 |
| Maximum Drill Diameter (Decimal Inch) | 0.7535 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.2000 |
| Maximum Drill Depth (mm) | 55.96 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0734 |
| Insert Seat Size | 2 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1200 |
| Flute Length (Decimal Inch) | 2.9700 |
| Overall Length (Decimal Inch) | 5.1300 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
