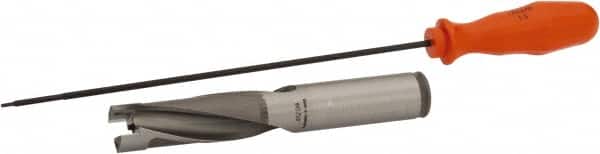

Kennametal - 19.28 to 19.78mm Diam, 3xD, 57.8mm Max Depth, 3/4" Shank Diam, 3.09" Flute, 5-1/4" OAL, Replaceable Tip Drill - KSEM0759 Insert, 2 Seat Size, Series KSEM
Item #: 01293315
Brand: Kennametal
Model #: 2238540
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 19.28 |
| Minimum Drill Diameter (Decimal Inch) | 0.7591 |
| Maximum Drill Diameter (mm) | 19.78 |
| Maximum Drill Diameter (Decimal Inch) | 0.7787 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.2800 |
| Maximum Drill Depth (mm) | 57.80 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0759 |
| Insert Seat Size | 2 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1200 |
| Flute Length (Decimal Inch) | 3.0900 |
| Overall Length (Decimal Inch) | 5.2500 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
