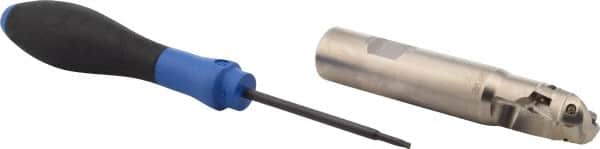

Seco - 3/4" Cut Diam, 0.87" Max Depth of Cut, 3/4" Shank Diam, 4.03" OAL, Indexable Ball Nose End Mill - 2" Head Length, R218.19 Toolholder, 218.19 100, SPMX 0703 Insert
Item #: 01352624
Brand: Seco
Model #: 87573
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.8700 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.19 100; SPMX 0703 |
| Toolholder Style | R218.19 |
| Overall Length (Decimal Inch) | 4.0300 |
| Toolholder Material | Carbide |
| Weldon Flat | Yes |
| Head Length (Decimal Inch) | 2.0000 |
| Number of Side Inserts Used on Toolholder | 2 |
