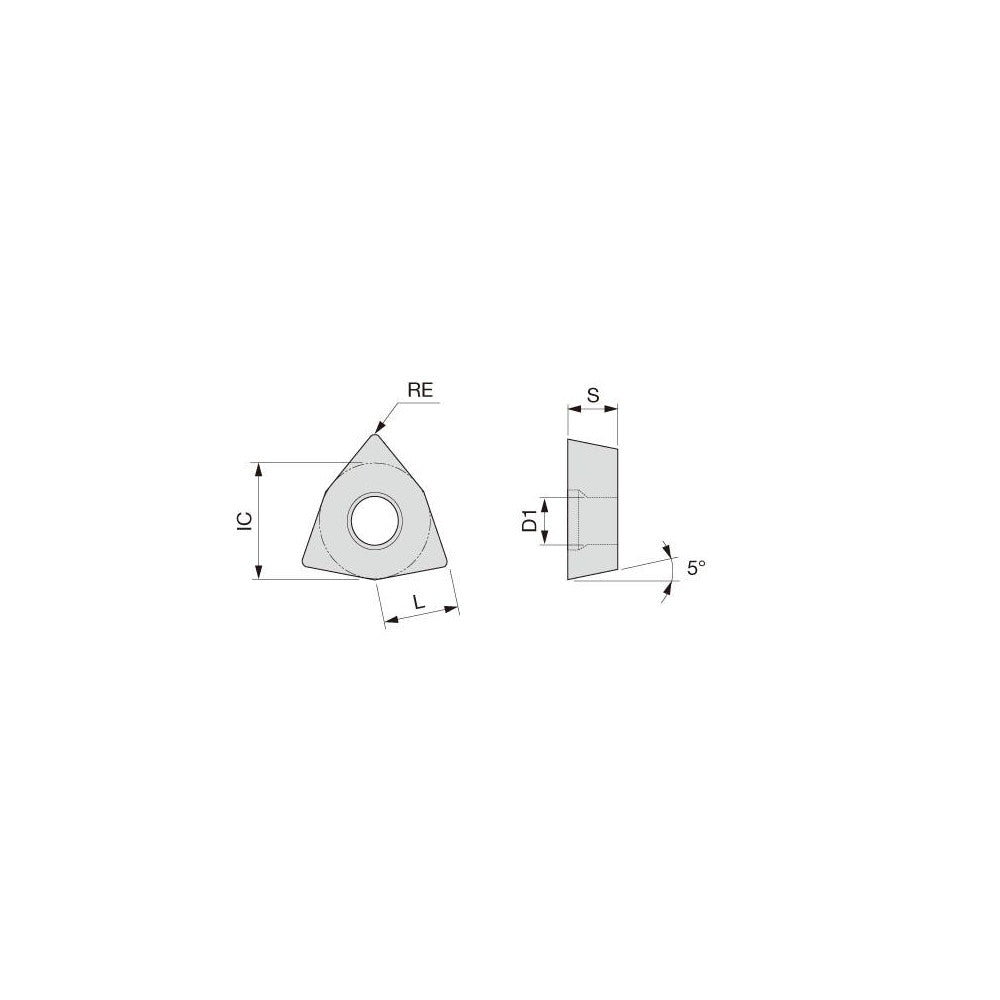

Boring Inserts; Insert Style: WBGT; Insert Size Code: 520.5; Insert Material: Carbide; Material Grade: N05, N15, K10, K25; Manufacturer Grade: GH110; Inscribed Circle (Inch): 5/32
Item #: 20870713
Brand: Tungaloy
Model #: 6815166
Product Specifications
| Insert Style | WBGT |
| Insert Size Code | 520.5 |
| Insert Material | Carbide |
| Material Grade | N05; N15; K10; K25 |
| Manufacturer Grade | GH110 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (Inch) | 1/128 |
| Relief Angle | 5 |
| Rake | Positive |
| Chipbreaker | W11 |
| Series | WBGTL-W11 |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Iso Code | WBGT060102L-W11 GH110 |
| Standards | ISO; ANSI |
| Rake Angle | 15 |
| Manufacturers Catalog Number | 6815166 |
| Length (Decimal Inch - 4 Decimals) | 0.2680 |
| Width (Decimal Inch - 4 Decimals) | 0.268 |
| Coating/Finish | TiCNO |
| UNSPSC Code | 23242105 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
