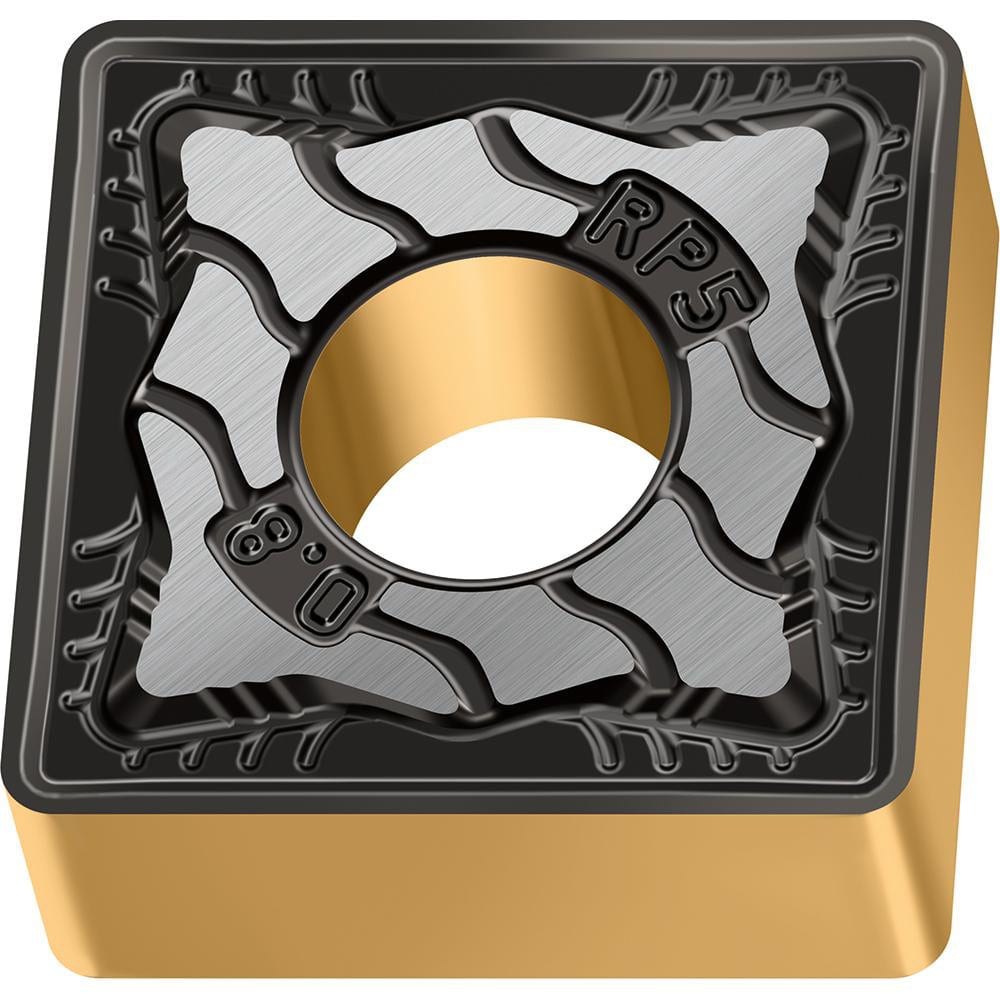

Turning Insert: SNMG866-RP5 WPP30G, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 1.0000″ Long, 1″ Inscribed Circle, 0.0940″ Corner Radius, 90.0 ° N/A Square, Series SNMG-RP5
Item #: 01390046
Brand: Walter
Model #: 8116146
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 866 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WPP30G |
| Hole Diameter (Decimal Inch) | 0.3590 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | SNMG-RP5 |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Inch) | 1 |
| Insert Length (Decimal Inch) | 1.0000 |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Ansi Code | SNMG866RP5WPP30G |
| Iso Code | SNMG250924-RP5 WPP30G |
| Chip Breaker | RP5 |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 01390046 |
| Mfr Part # | 8116146 |
| Country of OriginCountry of Origin is subject to change | Germany |
