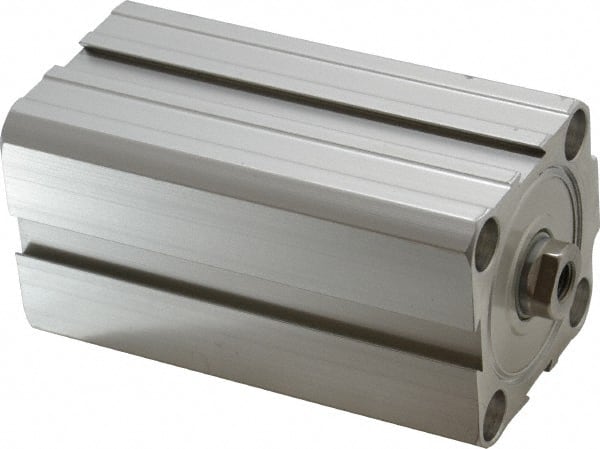

Norgren - 2-1/2" Stroke x 1-1/2" Bore Double Acting Air Cylinder - 1/8 Port, 5/16-24 Rod Thread, 145 Max psi, 23 to 176°F
Item #: 01513076
Brand: Norgren
Model #: DC/92040/M/2.5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1-1/2 |
| Bore Size (Decimal Inch) | 1.50 |
| Rod Diameter (mm) | 16.00 |
| Stroke Length (Inch) | 2-1/2 |
| Stroke Length (Decimal Inch) | 2.5000 |
| Port Size | 1/8 |
| Port Type | NPTF |
| Maximum Working Pressure (psi) | 145 |
| Rod Thread Size | 5/16-24 |
| Style | Square |
