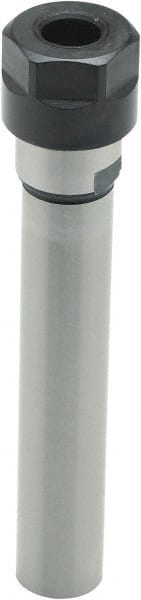

Parlec - 1mm to 13mm Capacity, 1.66" Projection, Straight Shank, ER20 Collet Chuck - 5.6" OAL, 5/8" Shank Diam
Item #: 01527076
Brand: Parlec
Model #: ER20-625-560H
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 5/8 |
| Projection (Decimal Inch) | 1.6600 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5118 |
| Overall Length (Decimal Inch) | 5.6000 |
| Type | ER Collet |
| Shank Length (Decimal Inch) | 3.9400 |
| Nose Diameter (Decimal Inch) | 1.3440 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.3440 |
