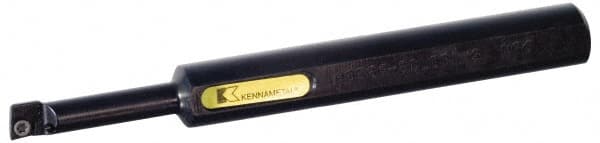

Kennametal - 0.204" Min Bore Diam, 2-1/2" OAL, 3/8" Shank Diam, A-SCLD-S Indexable Boring Bar - 1/2" Max Bore Depth, CD.. 120605 Insert, Screw Holding Method
Item #: 01583335
Brand: Kennametal
Model #: 1937960
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLD-S |
| Minimum Bore Diameter (Decimal Inch) | 0.2040 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 2.5000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | CD.. 120605 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (Decimal Inch) | 0.1040 |
| Rake Angle | 5 |
| Coolant Hole Diameter (Decimal Inch) | 0.0400 |
