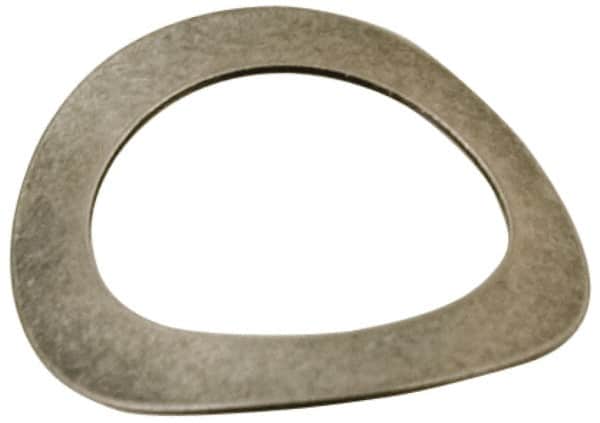

Made in USA - #0 Screw, 0.067" ID x 0.175" OD, Grade 300 Stainless Steel Single Wave Washer - 0.01" Thick, 0.04" Overall Height, 0.003" Deflection, 6.17 Lb at Deflection
Item #: 01587393
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Single wave washers deliver a consistent spring rate over a wide area. They are ideal for light loads.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Single Wave Washer |
| Screw Size | #0 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.067 |
| Outside Diameter (Decimal Inch) | 0.175 |
| Material | Stainless Steel |
| Material Grade | 300 |
| Overall Height (Decimal Inch) | 0.040 |
| Thickness (Decimal Inch) | 0.010 |
| Deflection (Decimal Inch) | 0.0030 |
| Load at Deflection (Lb.) | 6.17 |
