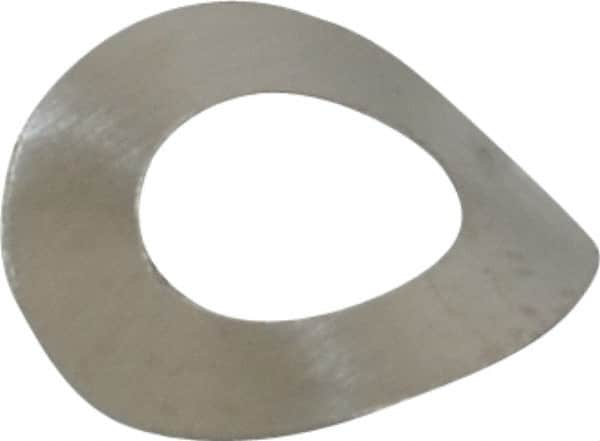

Made in USA - #5 Screw, 0.13" ID x 0.25" OD, Grade 300 Stainless Steel Single Wave Washer - 0.004" Thick, 0.055" Overall Height, 0.014" Deflection, 0.77 Lb at Deflection
Item #: 01587435
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Single wave washers deliver a consistent spring rate over a wide area. They are ideal for light loads.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Single Wave Washer |
| Screw Size | #5 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.130 |
| Outside Diameter (Decimal Inch) | 0.250 |
| Material | Stainless Steel |
| Material Grade | 300 |
| Overall Height (Decimal Inch) | 0.055 |
| Thickness (Decimal Inch) | 0.004 |
| Deflection (Decimal Inch) | 0.0140 |
| Load at Deflection (Lb.) | 0.77 |
