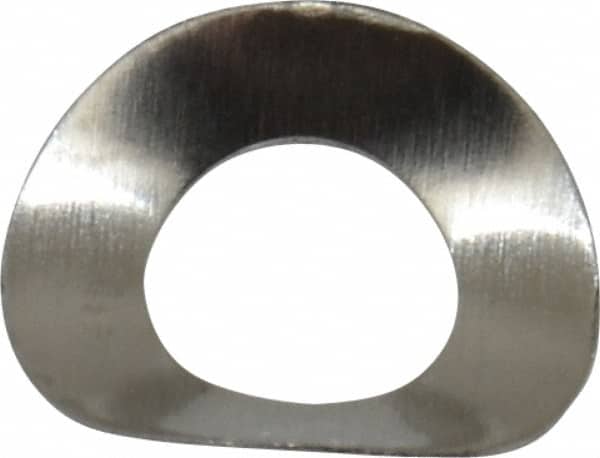

Made in USA - #6 Screw, 0.143" ID x 0.275" OD, Grade 300 Stainless Steel Single Wave Washer - 0.005" Thick, 0.062" Overall Height, 0.014" Deflection
Item #: 01587443
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Single wave washers deliver a consistent spring rate over a wide area. They are ideal for light loads.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Single Wave Washer |
| Screw Size | #6 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.143 |
| Outside Diameter (Decimal Inch) | 0.275 |
| Material | Stainless Steel |
| Material Grade | 300 |
| Overall Height (Decimal Inch) | 0.062 |
| Thickness (Decimal Inch) | 0.005 |
| Deflection (Decimal Inch) | 0.0140 |
| Load at Flat (Lb.) | 1.20 |
