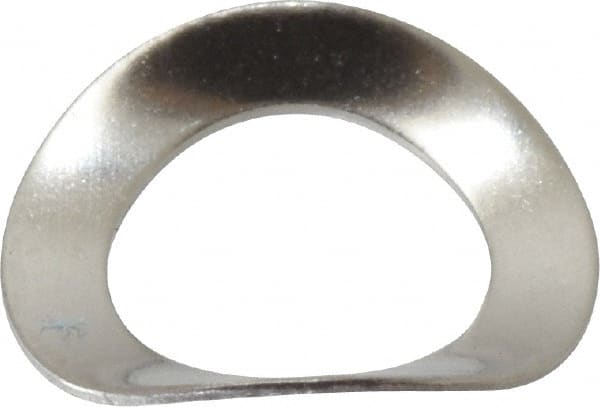

Made in USA - #10 Screw, 0.195" ID x 0.307" OD, Grade 300 Stainless Steel Single Wave Washer - 0.01" Thick, 0.053" Overall Height, 0.008" Deflection
Item #: 01587468
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Single wave washers deliver a consistent spring rate over a wide area. They are ideal for light loads.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Single Wave Washer |
| Screw Size | #10 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.195 |
| Outside Diameter (Decimal Inch) | 0.307 |
| Material | Stainless Steel |
| Material Grade | 300 |
| Overall Height (Decimal Inch) | 0.053 |
| Thickness (Decimal Inch) | 0.010 |
| Deflection (Decimal Inch) | 0.0080 |
| Load at Flat (Lb.) | 3.65 |
