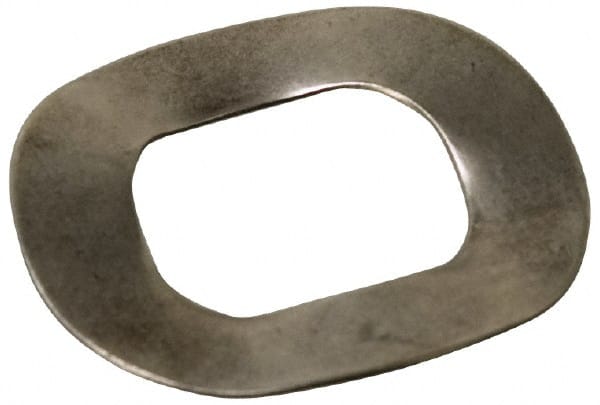

Made in USA - #4 Screw, 0.13" ID x 0.245" OD, Grade 17-7 PH-A Stainless Steel Triple Wave Washer - 0.006" Thick, 0.021" Overall Height, 0.004" Deflection, 9.05 Lb at Deflection
Item #: 01587484
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| Screw Size | #4 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.130 |
| Outside Diameter (Decimal Inch) | 0.245 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH-A |
| Overall Height (Decimal Inch) | 0.021 |
| Thickness (Decimal Inch) | 0.006 |
| Deflection (Decimal Inch) | 0.0040 |
| Load at Deflection (Lb.) | 9.05 |
