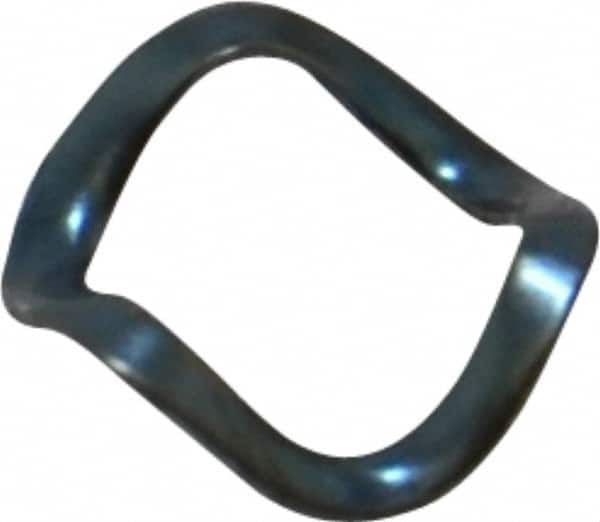

Made in USA - #8 Screw, 0.187" ID x 0.265" OD, Grade 17-7 PH-A Stainless Steel Triple Wave Washer - 0.008" Thick, 0.06" Overall Height, 0.004" Deflection
Item #: 01587518
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| Screw Size | #8 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.187 |
| Outside Diameter (Decimal Inch) | 0.265 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH-A |
| Overall Height (Decimal Inch) | 0.060 |
| Thickness (Decimal Inch) | 0.008 |
| Deflection (Decimal Inch) | 0.0040 |
| Load at Flat (Lb.) | 6.81 |
