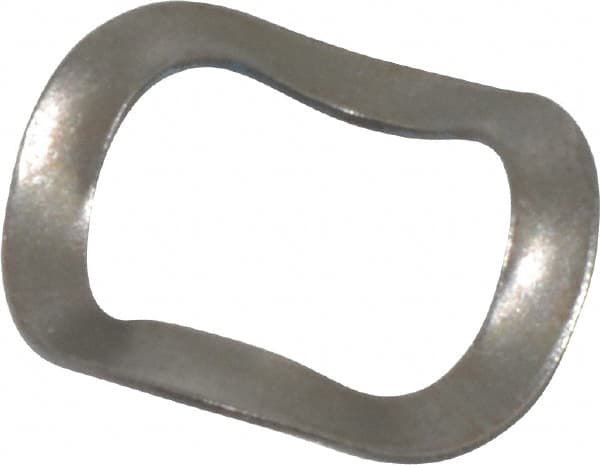

Made in USA - 3/8-7/16" Screw, 0.39" ID x 0.562" OD, Grade 17-7 PH-A Stainless Steel Triple Wave Washer - 0.02" Thick, 0.11" Overall Height, 0.007" Deflection
Item #: 01587559
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| Screw Size | 3/8-7/16 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.390 |
| Outside Diameter (Decimal Inch) | 0.562 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH-A |
| Overall Height (Decimal Inch) | 0.110 |
| Thickness (Decimal Inch) | 0.020 |
| Deflection (Decimal Inch) | 0.0070 |
| Load at Flat (Lb.) | 46.08 |
