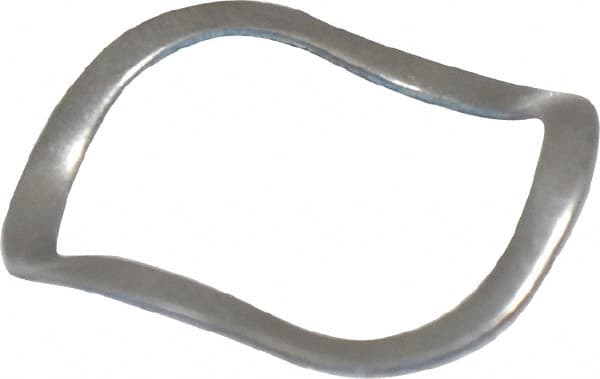

Made in USA - 5/8-11/16" Screw, 0.67" ID x 0.825" OD, Grade 17-7 PH-A Stainless Steel Triple Wave Washer - 0.02" Thick, 0.13" Overall Height, 0.018" Deflection
Item #: 01587583
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| Screw Size | 5/8-11/16 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.670 |
| Outside Diameter (Decimal Inch) | 0.825 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH-A |
| Overall Height (Decimal Inch) | 0.130 |
| Thickness (Decimal Inch) | 0.020 |
| Deflection (Decimal Inch) | 0.0180 |
| Load at Flat (Lb.) | 33.20 |
