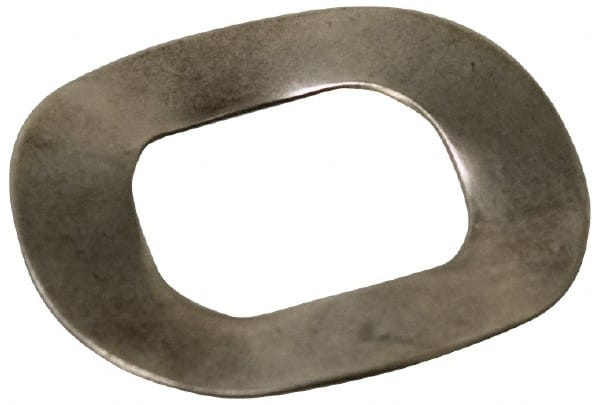

Made in USA - 1" Screw, 1.17" ID x 1.362" OD, Grade 17-7 PH-A Stainless Steel Triple Wave Washer - 0.016" Thick, 0.15" Overall Height, 0.065" Deflection, 15.54 Lb at Deflection
Item #: 01587617
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| Screw Size | 1 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 1.170 |
| Outside Diameter (Decimal Inch) | 1.362 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH-A |
| Overall Height (Decimal Inch) | 0.150 |
| Thickness (Decimal Inch) | 0.016 |
| Deflection (Decimal Inch) | 0.0650 |
| Load at Deflection (Lb.) | 15.54 |
