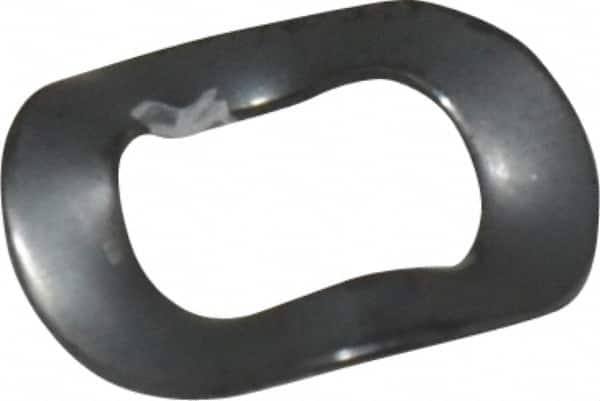

Made in USA - #10 Screw, 0.221" ID x 0.375" OD, Grade 1074-1095 Spring Steel Triple Wave Washer - 0.012" Thick, 0.047" Overall Height, 0.005" Deflection
Item #: 01587633
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| Screw Size | #10 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.221 |
| Outside Diameter (Decimal Inch) | 0.375 |
| Material | Spring Steel |
| Material Grade | 1074-1095 |
| Overall Height (Decimal Inch) | 0.047 |
| Thickness (Decimal Inch) | 0.012 |
| Deflection (Decimal Inch) | 0.0050 |
| Load at Flat (Lb.) | 30.73 |
