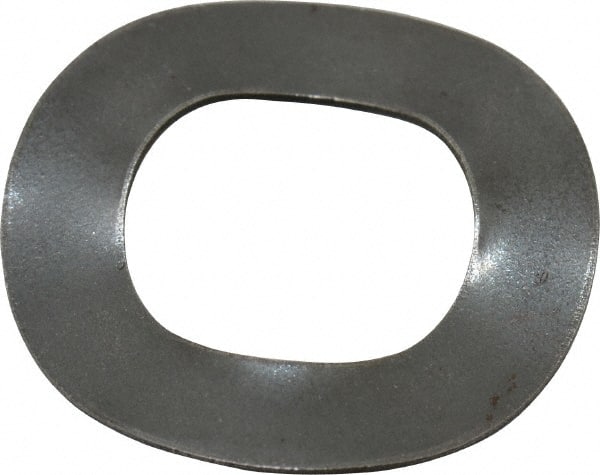

Made in USA - 7/16" Screw, 0.474" ID x 0.815" OD, Grade 1074-1095 Spring Steel Triple Wave Washer - 0.02" Thick, 0.07" Overall Height, 0.014" Deflection, 88.22 Lb at Deflection
Item #: 01587674
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| Screw Size | 7/16 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.474 |
| Outside Diameter (Decimal Inch) | 0.815 |
| Material | Spring Steel |
| Material Grade | 1074-1095 |
| Overall Height (Decimal Inch) | 0.070 |
| Thickness (Decimal Inch) | 0.020 |
| Deflection (Decimal Inch) | 0.0140 |
| Load at Deflection (Lb.) | 88.22 |
