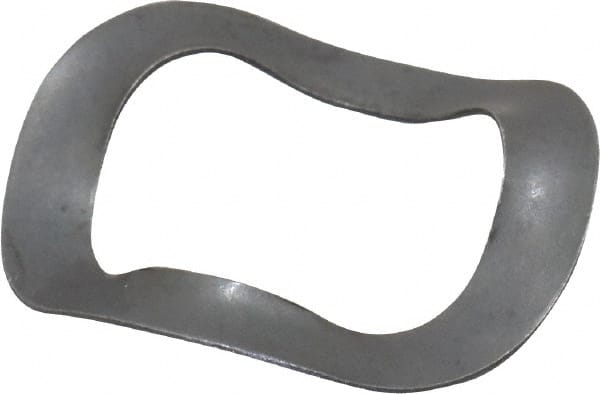

Made in USA - 1/2" Screw, 0.53" ID x 0.78" OD, Grade 1074-1095 Spring Steel Triple Wave Washer - 0.012" Thick, 0.125" Overall Height, 0.025" Deflection, 19.47 Lb at Deflection
Item #: 01587682
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| Screw Size | 1/2 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.530 |
| Outside Diameter (Decimal Inch) | 0.780 |
| Material | Spring Steel |
| Material Grade | 1074-1095 |
| Overall Height (Decimal Inch) | 0.125 |
| Thickness (Decimal Inch) | 0.012 |
| Deflection (Decimal Inch) | 0.0250 |
| Load at Deflection (Lb.) | 19.47 |
