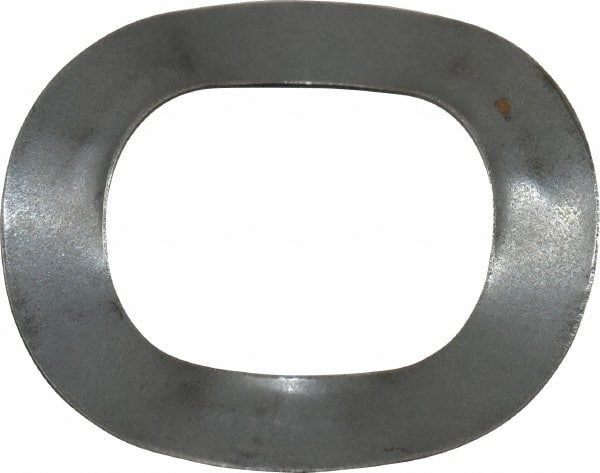

Made in USA - 5/8" Screw, 0.642" ID x 1" OD, Grade 1074-1095 Spring Steel Triple Wave Washer - 0.016" Thick, 0.105" Overall Height, 0.029" Deflection, 42.67 Lb at Deflection
Item #: 01587690
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| Screw Size | 5/8 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.642 |
| Outside Diameter (Decimal Inch) | 1.000 |
| Material | Spring Steel |
| Material Grade | 1074-1095 |
| Overall Height (Decimal Inch) | 0.105 |
| Thickness (Decimal Inch) | 0.016 |
| Deflection (Decimal Inch) | 0.0290 |
| Load at Deflection (Lb.) | 42.67 |
