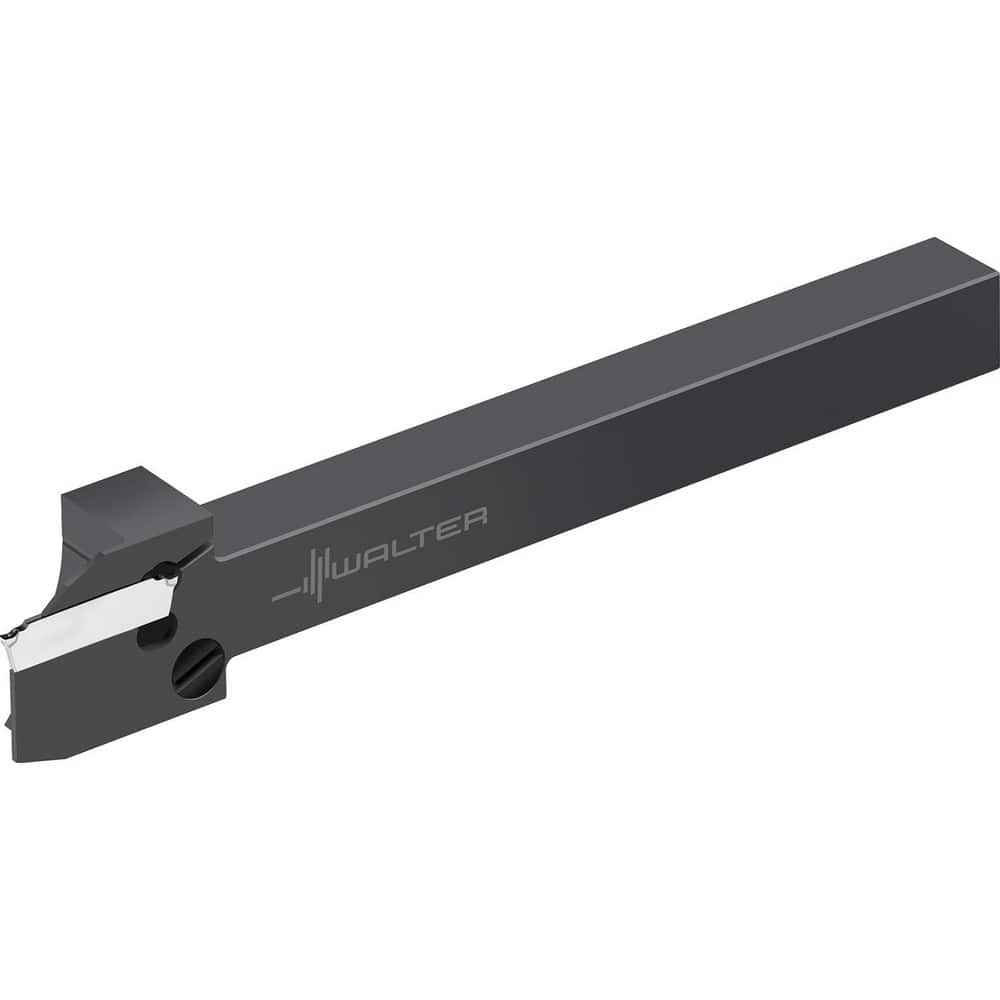

Indexable Grooving Toolholder: G4014-1010R-1T12DX18, 0.0790″ Max Groove Width 0.4720″ Max Depth, Uses DX18-1 Inserts, 0.3940″ Shank Height, Through Coolant
Item #: 01620327
Brand: Walter
Model #: 8120857
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 1 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Minimum Groove Width (Decimal Inch) | 0.0390 |
| Toolholder Style | G4014 |
| Maximum Groove Width (Decimal Inch) | 0.0790 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DX18-1 |
| Shank Width/Diameter (Decimal Inch) | 0.3940 |
| Shank Height (Decimal Inch) | 0.3940 |
| Series | G4014-10-16-R-DX |
| Overall Length (Decimal Inch) | 4.3300 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3780 |
| Head Length (Decimal Inch) | 0.9060 |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Toolholder Material | Steel |
| Coolant Through | Yes |
